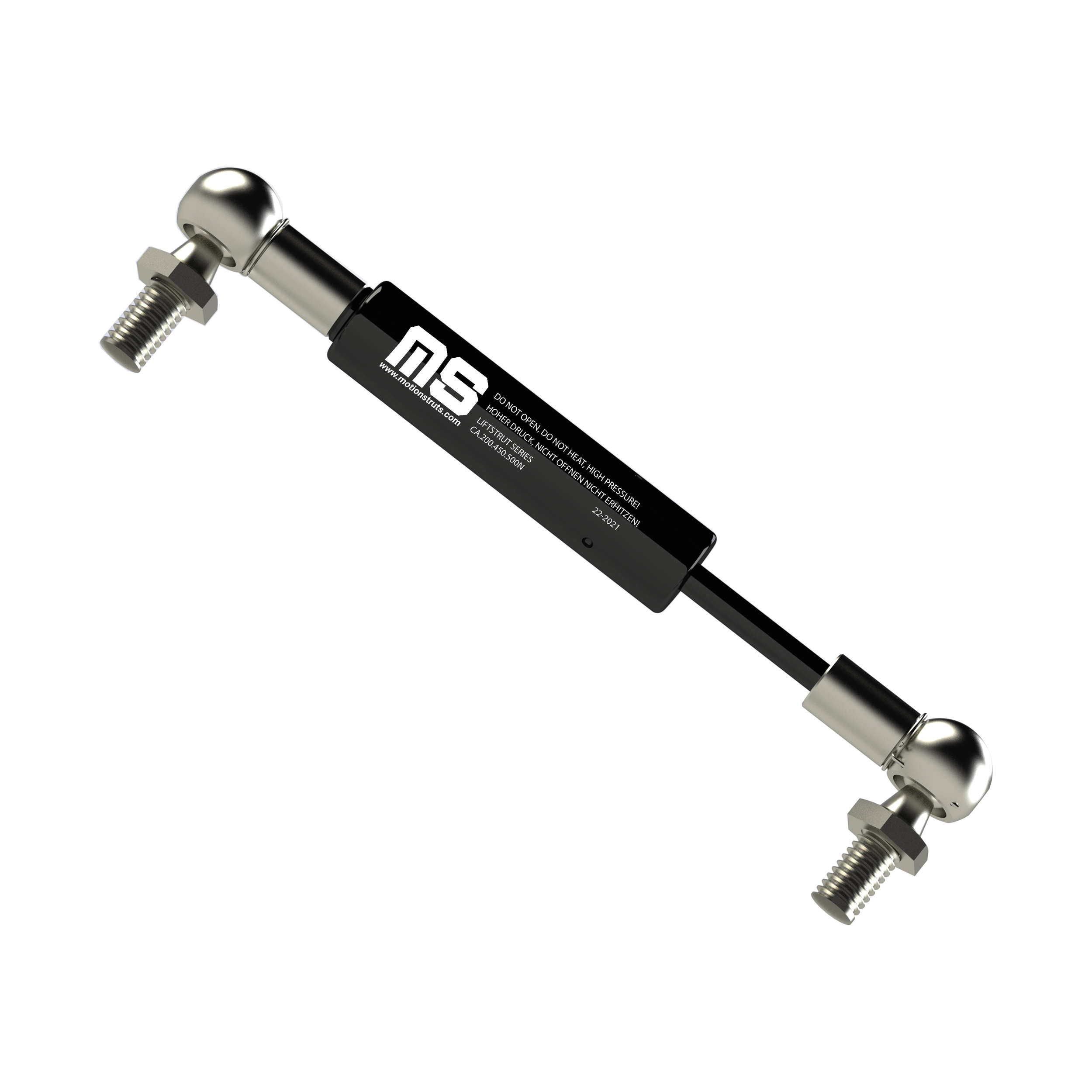

LS08BJ-180-441-F1 Gas Spring

Liftstrut Series LS08BJ-180-441-F1 Gas Spring

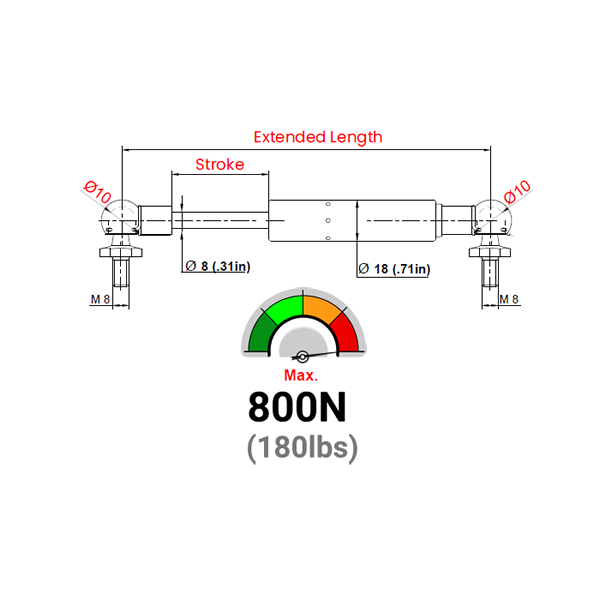

Diameter
18(0.71″) – 8(0.31″)

Stroke
180 (7.09)

Extended Length
441 (17.36)

Additional Information

Instruction For Use

Do mount standard gas springs rod down, use within a temperature range of –25°C up to +60°C.
Do not allow external objects to exert side load forces on the gas spring or on the end fittings.
Do ensure that the end fittings are in line so that side load forces are not applied as a result of misalignment.
Do try to use ball joints to help avoid side load forces. If eye (clevises) are used ensure a sloppy fit to allow lateral movement.
Do try to use shorter springs close to the hinge rather than long stroke springs away from the hinge.
Do provide physical stops to limit the spring’s extremes. i.e. ensure that undue force is not applied to over compress or over extend the spring.
Ensure the gas spring’s end fittings are compatible to gas spring and fully screwed home.
Do not cycle more than 15 times per minute. Do not scratch, dent, chip, bend or paint the rod.
If springs are to be stored prior to use, the spring should be stored rod down to lubricate the seal by its own.
