IL08PL-380-904-F1 Stainless Steel Gas Spring

Inoxlift Series IL08PL-380-904-F1 Stainless Steel Gas Spring

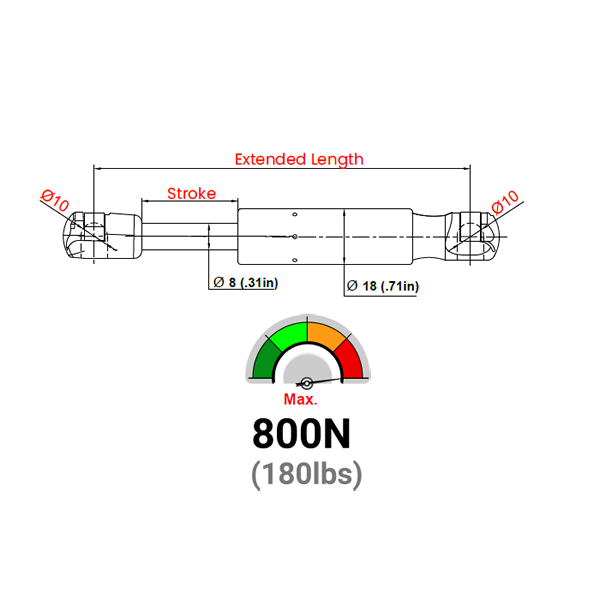

Diameter
18(0.71″) – 8(0.31″)

Stroke
380 (14,96in)

Extended Length
904 (35,59in)

Additional Information

Diameter	18mm ( 0.71") - 09mm ( 0.31" ) ( Inox )
Stroke	380
Extended Length	904

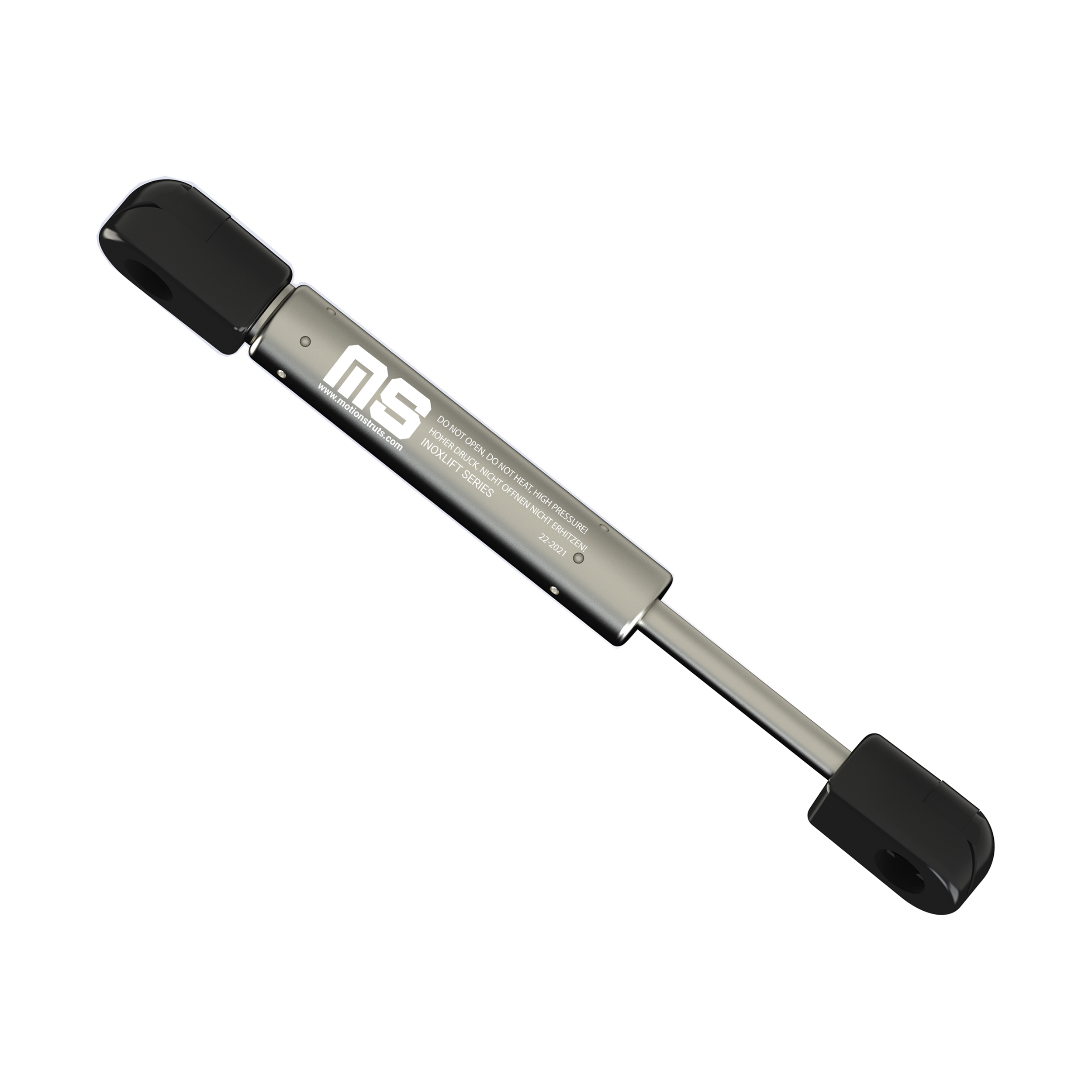

End Fittings	Plastic Socket - Plastic Socket ( Inox )
Pressure Range	50N - 800N (11lbs-180lbs)
Rod Material	Stainless Steel (AISI316L)
Tube Surface	Chrome Plated
Tube Material	Stainless Steel (AISI316L)
Rod Surface	Polished
Rod Mounting	Ø10mm (0,39") Ball Socket
Tube Mounting	Ø10mm (0,39″) Ball Socket

Instruction For Use

Do mount standard gas springs rod down, use within a temperature range of –25°C up to +60°C.
Do not allow external objects to exert side load forces on the gas spring or on the end fittings.
Do ensure that the end fittings are in line so that side load forces are not applied as a result of misalignment.
Do try to use ball joints to help avoid side load forces. If eye (clevises) are used ensure a sloppy fit to allow lateral movement.
Do try to use shorter springs close to the hinge rather than long stroke springs away from the hinge.
Do provide physical stops to limit the spring’s extremes. i.e. ensure that undue force is not applied to over compress or over extend the spring.
Ensure the gas spring’s end fittings are compatible to gas spring and fully screwed home.
Do not cycle more than 15 times per minute. Do not scratch, dent, chip, bend or paint the rod.
If springs are to be stored prior to use, the spring should be stored rod down to lubricate the seal by its own.
